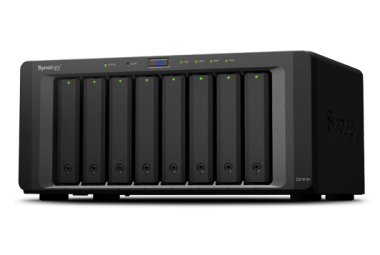

Featuring a quad-core processor, hardware encryption engine, and flawless software integration, DS1815+ is a powerful, expandable 8-bay NAS server that delivers outstanding speed and accelerated data encryption. Easily scalable, the DS1815+ can be equipped with up to 6GB of DDR3 RAM and host up to 144TB of raw capacity with two Synology DX513 units.
DS1815+ is powered by a quad-core CPU running at 2.4 GHz. Combined with 2GB of DDR3 RAM (expandable to 6GB), it delivers blazing-fast performance over 450 MB/s reading and 412 MB/s writing.1 That much power makes it easy for DS1815+ to multitask and provide consistently high throughput to all connected clients.
| Hardware Specifications | |
| CPU | |
| CPU Model | Intel Atom C2538 |
| CPU Architecture | 64-bit |
| CPU Frequency | Quad Core 2.4 GHz |
| Floating Point | |
| Hardware Encryption Engine (AES-NI) | |
| Memory | |
| System Memory | 2 GB DDR3 |
| Memory Module Pre-installed | 2 GB x 1 |
| Total Memory Slots | 2 |
| Memory Expandable up to | 6 GB (2 GB + 4 GB) |
| Storage | |
| Drive Bay(s) | 8 |
| Maximum Drive Bays with Expansion Unit | 18 |
| Compatible Drive Type |
|
| Maximum Internal Raw Capacity | 64 TB (8 TB HDD x 8) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 144 TB (8 TB HDD x 18) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | 108 TB |
| Hot Swappable Drive | |
| External Ports | |
| USB 3.0 Port | 4 |
| eSATA Port | 2 |
| File System | |
| Internal Drives |
|
| External Drives |
|
| Appearance | |
| Size (Height x Width x Depth) | 157 mm x 340 mm x 233 mm |
| Weight | 5.29 kg |
| Others | |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| Wake on LAN/WAN | |
| System Fan | 120 mm x 120 mm x 2 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan | |
| Wireless Support (dongle) | |
| Power Recovery | |
| Noise Level* | 24.3 dB(A) |
| Scheduled Power On/Off | |
| Power Supply Unit / Adapter | 250W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 45.88 W (Access) 25.23 W (HDD Hibernation) |
| British Thermal Unit | 156.55 BTU/hr (Access) 86.09 BTU/hr (HDD Hibernation) |
| Environment Temperature | |
| Operating Temperature | 5°C to 35°C (40°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
| Warranty | 3 Years |
| Notes |
|
| DSM Specifications | |
| Storage Management | |
| Maximum Internal Volume Number | 512 |
| Maximum iSCSI Target Number | 32 |
| Maximum iSCSI LUN | 256 |
| iSCSI LUN Clone/Snapshot, Windows ODX | |
| Supported RAID Type |
|
| RAID Migration |
|
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD |
|
| Global Hot Spare Supported RAID Type |
|
| SSD Support | |
| SSD Read/Write Cache | |
| File Sharing Capacity | |
| Maximum User Accounts | 2048 |
| Maximum Groups | 256 |
| Maximum Shared Folder | 512 |
| Maximum Shared Folder Sync Tasks | 8 |
| Maximum Concurrent CIFS/AFP/FTP Connections | 512 |
| Windows Access Control List (ACL) Integration | |
| NFS Kerberos Authentication | |
| High Availability Manager | |
| Log Center | |
| Syslog Events per Second | 800 |
| Virtualization | |
| VMware vSphere 5 with VAAI | |
| Windows Server 2012 | |
| Windows Server 2012 R2 | |
| Citrix Ready | |
| Add-on Packages | |
| Antivirus by McAfee (Trial) | |
| Central Management System | |
| Cloud Station Server | |
| Maximum Concurrent File Transfers | 512 |
| Maximum Concurrent File Transfers (with RAM expansion) | 1500 |
| Docker DSM | |
| Maximum Docker DSM Number (Licenses required) | 10 (including 1 Free License) |
| Document Viewer | |
| Download Station | |
| Maximum Concurrent Download Tasks | 80 |
| HiDrive Backup | |
| MailPlus / MailPlus Server | |
| Free Email Accounts | 5 |
| Recommended MailPlus Client Number | Up to 150 |
| Maximum Server Performance | 362,000 emails per day, approx. 11.7 GB |
| Notes |
|
| Media Server | |
| DLNA Certification | |
| Snapshot Replication | |
| Maximum Snapshots per Shared Folder | 1024 |
| Maximum Snapshots of all Shared Folder | 65536 |
| SpreadSheet | |
| Maximum Simultaneous Editing Users | 140 |
| Surveillance Station | |
| Maximum IP cam (Licenses required) | 40 (including 2 Free License) |
| Total FPS (H.264)* | 1200 FPS @ 720p (1280×720) 480 FPS @ 1080p (1920×1080) 250 FPS @ 3M (2048×1536) 200 FPS @ 5M (2591×1944) |
| Total FPS (MJPEG)* | 300 FPS @ 720p (1280×720) 150 FPS @ 1080p (1920×1080) 100 FPS @ 3M (2048×1536) 60 FPS @ 5M (2591×1944) |
| Notes | Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. |
| Video Station | |
| Video Transcoding | Group 1 – Type 1 |
| Maximum Transcoding Channel Number | 1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1 |
| Virtual DSM Manager | |
| VPN Server | |
| Maximum Connections | 20 |
| Environment & Packaging | |
| Environment | RoHS Compliant |
| Packaging Content |
|
| Optional Accessories |
|
