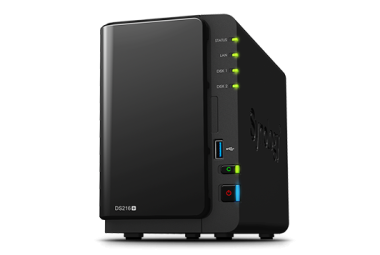

Featuring a dual-core CPU with AES-NI hardware encryption engine, Btrfs file system support, and 4K UHD transcoding, DS216+ is a high-performance 2-bay NAS server aimed at small office and home users who want an efficient and secure storage solution to protect and share data, as well as enjoy on-the-fly video transcoding.
Equipped with a dual-core processor and AES-NI hardware encryption engine, DS216+ delivers blazingly fast file transfer speeds — even when handling encrypted data. DS216+ delivers high-speed performance, exceeding 111 MB/s reading and writing, while ensuring encrypted data transmissions at over 113 MB/s reading and 109 MB/s writing.
| Hardware Specifications | |
| CPU | |
| CPU Model | Intel Celeron N3050 |
| CPU Architecture | 64-bit |
| CPU Frequency | Dual Core 1.6 burst up to 2.16 GHz |
| Floating Point | |
| Hardware Encryption Engine (AES-NI) | |
| Hardware Transcoding Engine | H.264 (AVC), H.265 (HEVC), MPEG-2 and VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30 |
| Memory | |
| System Memory | 1 GB DDR3 |
| Storage | |
| Drive Bay(s) | 2 |
| Compatible Drive Type |
|
| Maximum Internal Raw Capacity | 16 TB (8 TB HDD x 2) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | 108 TB |
| Hot Swappable Drive | |
| External Ports | |
| USB 2.0 Port | 2 |
| USB 3.0 Port | 1 |
| eSATA Port | 1 |
| USBCopy | |
| File System | |
| Internal Drives |
|
| External Drives |
|
| Appearance | |
| Size (Height x Width x Depth) | 165 mm x 108 mm x 233.2 mm |
| Weight | 1.25 kg |
| Others | |
| RJ-45 1GbE LAN Port | 1 |
| Wake on LAN/WAN | |
| System Fan | 92 mm x 92 mm x 1 pcs |
| Fan Speed Mode |
|
| Wireless Support (dongle) | |
| Brightness adjustable front LED indicators | |
| Power Recovery | |
| Noise Level* | 18.2 dB(A) |
| Scheduled Power On/Off | |
| Power Supply Unit / Adapter | 60W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 17.57 W (Access) 7.52 W (HDD Hibernation) |
| British Thermal Unit | 59.99 BTU/hr (Access) 25.68 BTU/hr (HDD Hibernation) |
| Environment Temperature | |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
| Warranty | 2 Years |
| Notes |
|
| DSM Specifications | |
| Storage Management | |
| Maximum Internal Volume Number | 256 |
| Maximum iSCSI Target Number | 32 |
| Maximum iSCSI LUN | 256 |
| Supported RAID Type |
|
| RAID Migration | Basic to RAID 1 |
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD | Synology Hybrid RAID |
| File Sharing Capacity | |
| Maximum User Accounts | 2048 |
| Maximum Groups | 256 |
| Maximum Shared Folder | 256 |
| Maximum Shared Folder Sync Tasks | 4 |
| Maximum Concurrent CIFS/AFP/FTP Connections | 256 |
| Windows Access Control List (ACL) Integration | |
| NFS Kerberos Authentication | |
| Log Center | |
| Syslog Events per Second | 400 |
| Add-on Packages | |
| Antivirus by McAfee (Trial) | |
| Central Management System | |
| Cloud Station Server | |
| Maximum Concurrent File Transfers | 256 |
| Docker DSM | |
| Maximum Docker DSM Number (Licenses required) | 1 (including 1 Free License) |
| Document Viewer | |
| Download Station | |
| Maximum Concurrent Download Tasks | 80 |
| HiDrive Backup | |
| Media Server | |
| DLNA Certification | |
| Snapshot Replication | |
| Maximum Snapshots per Shared Folder | 256 |
| Maximum Snapshots of all Shared Folder | 4096 |
| SpreadSheet | |
| Maximum Simultaneous Editing Users | 110 |
| Surveillance Station | |
| Maximum IP cam (Licenses required) | 25 (including 2 Free License) |
| Total FPS (H.264)* | 750 FPS @ 720p (1280×720) 300 FPS @ 1080p (1920×1080) 160 FPS @ 3M (2048×1536) 100 FPS @ 5M (2591×1944) |
| Total FPS (MJPEG)* | 300 FPS @ 720p (1280×720) 120 FPS @ 1080p (1920×1080) 90 FPS @ 3M (2048×1536) 60 FPS @ 5M (2591×1944) |
| Video Station | |
| Video Transcoding | 4K Group 1 |
| Maximum Transcoding Channel Number | 1 channel, 30 FPS @ 4K (4096 x 2160), H.264 (AVC)/H.265 (HEVC) or 3 channels, 30 FPS @ 1080p (1920×1080), H.264 (AVC)/H.265 (HEVC)/MPEG-2/VC-1 |
| VPN Server | |
| Maximum Connections | 20 |
| Environment & Packaging | |
| Environment | RoHS Compliant |
| Packaging Content |
|
| Optional Accessories |
|
