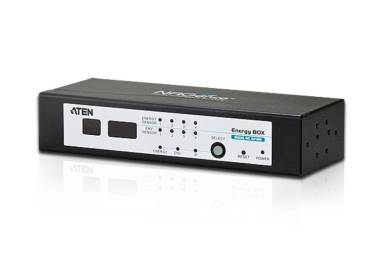

EC1000 – Energy Box with Real-time Power Monitoring

EC1000 – Energy Box with Real-time Power Monitoring
OVerView
The EC1000 Energy Box is the latest evolution of NRGence™ – ATEN’s energy intelligence solutions. It is the intelligent, cost effective solution to monitor ATEN’s Energy PDUs – to ensure safe and effective energy-saving power management.

The EC1000 Energy Box has four Energy Sensor ports to connect to four Energy PDU modules and four Environment Sensor ports for external sensors to monitor environmental conditions. Each environmental sensor can provide measured readings of temperature, humidity, and differential pressure from separate areas of a data room, giving a wide range of monitoring and protection you need.

Key Features
Space saving 1U rack mounting with front and rear mounting
4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port, 2 Current Energy Sensors Ports, 2 Current/ Voltage Energy Sensors Ports)
4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure*
Maximum Amperage Monitor 32A@100V ~ 240V (Energy Box)
