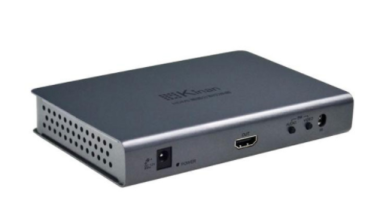

HD0104 – QUAD Screen Multiviewer

Overview:

• No software required – easily switching via button, IR remote control(10 M in a open environment)
• Support HDMI digital monitor . fully support HDMI1.3a and HDCP 1.2
• Hot pluggable —add or remove servers without having to power down the switch
• Support 4 HDMI input and 1 HDMI output(Max resolution is up to 1920×1200@60Hz)
• Support 5 channel HDMI signal segmentation
• Support 4 channel HDMI signal seamless switching
• Support IR remote power on/off
• Resolution :1080P, 720P, 1024*768, 1360*768
• Support audio switching , output display device should have its own built- in speaker
