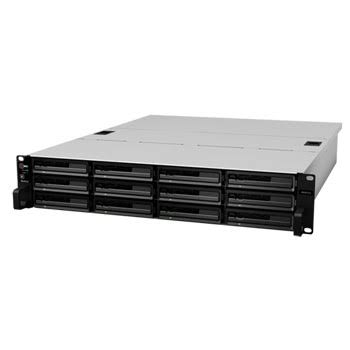

Designed for distributed enterprises, RS3614xs and RS3614RPxs (equipped with redundant power supplies) provide a reliable and ultra-high performance network attached storage solution to centralize data protection, simplify data management, and deploy virtualization solutions with minimal time spent on setup and maintenance.
RS3614xs/RS3614RPxs delivers ultra-high performance at 2,822.58 MB/s throughput and 225,749 IOPS under RAID 5 configuration.1RS3614xs/RS3614RPxs is equipped with 4GB RAM and up to 32GB ECC RAM expansion support, so enterprises can guarantee data accuracy as well as superior ultra-high performance for the mission-critical tasks of the business.
| Hardware Specifications | |
| CPU | |
| CPU Model | Intel Core i3-4130 |
| CPU Architecture | 64-bit |
| CPU Frequency | Dual Core 3.4 GHz |
| Floating Point | |
| Hardware Encryption Engine (AES-NI) | |
| Memory | |
| System Memory | 4 GB DDR3 ECC |
| Memory Module Pre-installed | 2 GB x 2 |
| Total Memory Slots | 4 |
| Memory Expandable up to | 32 GB (8 GB X 4) |
| Storage | |
| Drive Bay(s) | 12 |
| Maximum Drive Bays with Expansion Unit | 36 |
| Compatible Drive Type |
|
| Maximum Internal Raw Capacity | 96 TB (8 TB HDD x 12) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 288 TB (8 TB HDD x 36) (Capacity may vary by RAID types) |
| Maximum Single Volume Size |
|
| Hot Swappable Drive | |
| External Ports | |
| USB 2.0 Port | 2 |
| USB 3.0 Port | 2 |
| Expansion Port | 2 |
| File System | |
| Internal Drives |
|
| External Drives |
|
| Appearance | |
| Size (Height x Width x Depth) | 88 mm x 445 mm x 570 mm 88 mm x 445 mm x 570 mm (for RP model) |
| Weight | 13.3 kg 15.4 kg (for RP model) |
| Others | |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| PCIe x8 Slot for 10GbE / 1GbE Network Card | 2 (white at x8 mode, black at x4 mode) |
| Wake on LAN/WAN | |
| System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan | |
| Wireless Support (dongle) | |
| Power Recovery | |
| Noise Level* | 40.5 dB(A) 42.2 dB(A) (for RP model) |
| Scheduled Power On/Off | |
| Power Supply Unit / Adapter | 500W 2 X 400W (for RP model) |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 97.42 W (Access) 57.48 W (HDD Hibernation) 101.02 W (Access, for RP model) 62.73 W (HDD Hibernation, for RP model) |
| British Thermal Unit | 332.41 BTU/hr (Access) 196.12 BTU/hr (HDD Hibernation) 344.69 BTU/hr (Access, for RP model) 214.04 BTU/hr (HDD Hibernation, for RP model) |
| Redundant Power Supply (for xs+ and RP model) | |
| Environment Temperature | |
| Operating Temperature | 5°C to 35°C (40°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
| Warranty | 5 Years |
| Notes | Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s). |
| DSM Specifications | |
| Storage Management | |
| Maximum Internal Volume Number | 1024 |
| Maximum iSCSI Target Number | 64 |
| Maximum iSCSI LUN | 512 |
| iSCSI LUN Clone/Snapshot, Windows ODX | |
| RAID Group | |
| Supported RAID Type |
|
| RAID Migration |
|
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD |
|
| Global Hot Spare Supported RAID Type |
|
| SSD Support | |
| SSD Read/Write Cache | |
| File Sharing Capacity | |
| Maximum User Accounts | 16000 |
| Maximum Groups | 512 |
| Maximum Shared Folder | 512 |
| Maximum Shared Folder Sync Tasks | 16 |
| Maximum Concurrent CIFS/AFP/FTP Connections | 1024 |
| Windows Access Control List (ACL) Integration | |
| NFS Kerberos Authentication | |
| High Availability Manager | |
| Log Center | |
| Syslog Events per Second | 3000 |
| Virtualization | |
| VMware vSphere 5 with VAAI | |
| Windows Server 2012 | |
| Windows Server 2012 R2 | |
| Citrix Ready | |
| Add-on Packages (learn more about the complete add-on package list) | |
| Antivirus by McAfee (Trial) | |
| Central Management System | |
| Cloud Station Server | |
| Maximum Concurrent File Transfers | 1024 |
| Maximum Concurrent File Transfers (with RAM expansion) | 10000 |
| Docker DSM | |
| Maximum Docker DSM Number (Licenses required) | 25 (including 1 Free License) |
| Document Viewer | |
| Download Station | |
| Maximum Concurrent Download Tasks | 80 |
| HiDrive Backup | |
| MailPlus / MailPlus Server | |
| Free Email Accounts | 5 |
| Recommended MailPlus Client Number | Up to 300 |
| Maximum Server Performance | 832,000 emails per day, approx. 26.9 GB |
| Notes |
|
| Media Server | |
| DLNA Compliance | |
| PetaSpace | |
| Snapshot Replication | |
| Maximum Snapshots per Shared Folder | 1024 |
| Maximum Snapshots of all Shared Folder | 65536 |
| SpreadSheet | |
| Maximum Simultaneous Editing Users | 205 |
| Surveillance Station | |
| Maximum IP cam (Licenses required) | 75 (including 2 Free License) |
| Total FPS (H.264)* | 2250 FPS @ 720p (1280×720) 650 FPS @ 1080p (1920×1080) 450 FPS @ 3M (2048×1536) 200 FPS @ 5M (2591×1944) |
| Total FPS (MJPEG)* | 600 FPS @ 720p (1280×720) 240 FPS @ 1080p (1920×1080) 150 FPS @ 3M (2048×1536) 150 FPS @ 5M (2591×1944) |
| Notes | Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. |
| Video Station | |
| Video Transcoding | Group 1 – Type 2 |
| Virtual DSM Manager | |
| VPN Server | |
| Maximum Connections | 30 |
| Environment & Packaging | |
| Environment | RoHS Compliant |
| Packaging Content |
|
| Optional Accessories |
|
