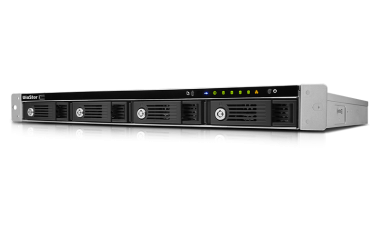

Powered by the Intel ® dual-core processor and 4GB of memory, the VS-4116U-RP Pro+ delivers high performance to ensure stable recordings and smooth playbacks of multiple megapixel cameras. It is designed for the SMB segment with the features of robust performance, solid reliability and high-definition local display. Moreover, with built-in GPIO terminal block, VS-4116U-RP Pro+ supports alarm system linkage. GPIO interface accepts external connection linking to alarm equipment and is generally applied to various surveillance devices.
- 250 Mbps for recording and playback from multiple megapixel cameras
- HDMI output delivers up to 200fps Full HD local display
- Simultaneously handles inputs from up to 16 megapixel cameras
- Large capacity to ensure continuous high-resolution video recording
- Install free QSCM Lite from App Center to enjoy advanced CMS features
| Processor | Dual-core Intel® processor |
| Memory | 4GB RAM |
| HDD Capacity | 4x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive NOTE:
|
| HDD Tray | 4 x hot-swappable and lockable tray |
| LAN Port | 2 x Gigabit RJ-45 Ethernet port |
| LED Indicators | USB, Status, HDD1-4, LAN |
| USB | 2 x USB 3.0 port (Back: 2) 3 x USB 2.0 port (Front: 1; Back: 2) Support USB mouse, USB keyboard, USB sound card, and USB UPS etc. |
| Buttons | Power button, One-touch-auto-video-backup button, Reset button |
| Alarm Buzzer | System warning |
| Audio | Audio In/Out for local display |
| Series Interface | RS-232 interface *1(reserved) , RS-485*1 interface (reserved) |
| Alarm In | Alarm In * 8 |
| Alarm Out | Alarm Out * 2 |
| Video Output | 1x HDMI Suggested video output resolution: 1920 x 1080 (Full HD) |
| Form Factor | 1U rackmount |
| Dimensions | 44(H) x 439(W) x 499(D) mm 1.73(H) x 16.97(W) x 19.65(D) inch |
| Weight | Net weight: 11.54 kg/ 25.44 lb Gross weight: 13.5 kg/ 29.76 lb |
| Power Consumption | 80W (with 4 x 2TB HDD installed) |
| Operation Environment | Temperature 0~40˚C/ 32~104˚F Humidity 5~95% RH non-condensing, wet bulb: 27˚C. |
| Power Supply | Input: 100-240V AC, 50/60Hz, Output: 250W |
| Fan | 3 x cooling fan (4 cm, 12V DC; internal ) |
| Certification | CE, FCC, VCCI, BSMI |
