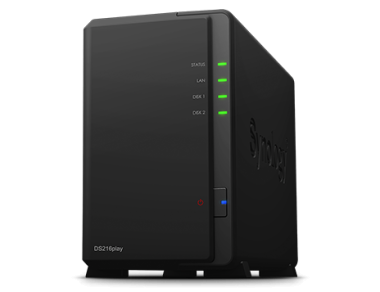

DiskStation DS216play
OverView
DS216play is a 2-bay NAS featuring 4K Ultra HD video transcoding and powerful processing capabilities, letting you enjoy high definition media contents, as well as keeping all the other aspects of a fully-fledged NAS uncompromised.
Powered by a hardware-accelerated transcoding engine, DS216play supports H.264/H.265 1080p and H.265 4K codecs, allows you to transcode 4K videos to 1080p, making them suitable for all screens and bandwidths whether they are local media players or remote mobile devices. In addition, you can also stream original 4K resolution videos to your multimedia player or 4K TV within a local network environment. 4K transcoding is available only through Synology’s Video Station, DS video, Media Server.
Specifications
| Hardware Specifications | |
| CPU | |
| CPU Model | STM STiH412 |
| CPU Architecture | 32-bit |
| CPU Frequency | Dual Core 1.5 GHz |
| Floating Point | |
| Hardware Encryption Engine | |
| Hardware Transcoding Engine | H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1, Maximum resolution: 4K (3840 x 2160), Maximum FPS: 30 |
| Memory | |
| System Memory | 1 GB DDR3 |
| Storage | |
| Drive Bay(s) | 2 |
| Compatible Drive Type |
|
| Maximum Internal Raw Capacity | 16 TB (8 TB HDD x 2) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | 16 TB |
| External Ports | |
| USB 2.0 Port | 1 |
| USB 3.0 Port | 1 |
| File System | |
| Internal Drives | EXT4 |
| External Drives |
|
| Appearance | |
| Size (Height x Width x Depth) | 165 mm x 100 mm x 225.5 mm |
| Weight | 0.88 kg |
| Others | |
| RJ-45 1GbE LAN Port | 1 |
| Wake on LAN/WAN | |
| System Fan | 92 mm x 92 mm x 1 pcs |
| Fan Speed Mode |
|
| Wireless Support (dongle) | |
| Power Recovery | |
| Noise Level* | 18.5 dB(A) |
| Scheduled Power On/Off | |
| Power Supply Unit / Adapter | 60W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 15.08 W (Access) 6.83 W (HDD Hibernation) |
| British Thermal Unit | 51.49 BTU/hr (Access) 23.32 BTU/hr (HDD Hibernation) |
| Environment Temperature | |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
| Warranty | 2 Years |
| Notes |
|
| DSM Specifications | |
| Storage Management | |
| Maximum Internal Volume Number | 256 |
| Maximum iSCSI Target Number | 10 |
| Maximum iSCSI LUN | 10 |
| Supported RAID Type |
|
| RAID Migration | Basic to RAID 1 |
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD | Synology Hybrid RAID |
| File Sharing Capacity | |
| Maximum User Accounts | 2048 |
| Maximum Groups | 256 |
| Maximum Shared Folder | 256 |
| Maximum Shared Folder Sync Tasks | 4 |
| Maximum Concurrent CIFS/AFP/FTP Connections | 256 |
| Windows Access Control List (ACL) Integration | |
| NFS Kerberos Authentication | |
| Log Center | |
| Syslog Events per Second | 400 |
| Add-on Packages | |
| Cloud Station Server | |
| Maximum Concurrent File Transfers | 256 |
| Download Station | |
| Maximum Concurrent Download Tasks | 50 |
| HiDrive Backup | |
| Media Server | |
| DLNA Certification | |
| PDF Viewer | |
| SpreadSheet | |
| Maximum Simultaneous Editing Users | 50 |
| Surveillance Station | |
| Maximum IP cam (Licenses required) | 15 (including 2 Free License) |
| Total FPS (H.264)* | 450 FPS @ 720p (1280×720) 180 FPS @ 1080p (1920×1080) 110 FPS @ 3M (2048×1536) 80 FPS @ 5M (2591×1944) |
| Total FPS (MJPEG)* | 210 FPS @ 720p (1280×720) 70 FPS @ 1080p (1920×1080) 50 FPS @ 3M (2048×1536) 30 FPS @ 5M (2591×1944) |
| Notes | Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. |
| Video Station | |
| Video Transcoding | 4K Group 2 |
| Maximum Transcoding Channel Number | 1 channel, 30 FPS @ 4K (3840 x 2160), H.265 (HEVC) or 1 channel, 30 FPS @ 1080p (1920×1080), H.264 (AVC)/H.265 (HEVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1 |
| VPN Server | |
| Maximum Connections | 15 |
| Environment & Packaging | |
| Environment | RoHS Compliant |
| Packaging Content |
|
| Optional Accessories |
|
