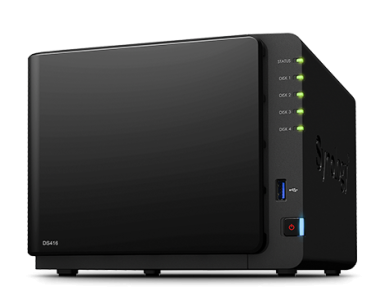

Synology DiskStation DS416 is the ideal solution for SMBs and home users seeking to establish a robust, dense, and high-value storage server or private cloud. Featuring a powerful hardware encryption engine, DS416 ensures your encrypted data remains available in an instant.
Featuring a dual-core processor with hardware encryption engine, DS416 delivers blazingly fast file transfer speeds – even when handling encrypted data. With Link Aggregation enabled, DS416 delivers average reading and writing speeds of 220 MB/s and 140 MB/s respectively, while encrypted file transfers remain quickly retrievable, with performance exceeding 146 MB/s reading and 65 MB/s writing.1 That means you can safeguard data without sacrificing performance.
| Hardware Specifications | |
| CPU | |
| CPU Model | Annapurna Labs Alpine AL-212 |
| CPU Architecture | 32-bit |
| CPU Frequency | Dual Core 1.4 GHz |
| Floating Point | |
| Hardware Encryption Engine | |
| Memory | |
| System Memory | 1 GB DDR3 |
| Storage | |
| Drive Bay(s) | 4 |
| Compatible Drive Type |
|
| Maximum Internal Raw Capacity | 32 TB (8 TB HDD x 4) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | 16 TB |
| Hot Swappable Drive | |
| External Ports | |
| USB 3.0 Port | 3 |
| File System | |
| Internal Drives | EXT4 |
| External Drives |
|
| Appearance | |
| Size (Height x Width x Depth) | 165 mm x 203 mm x 233.2 mm |
| Weight | 2.04 kg |
| Others | |
| RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| Wake on LAN/WAN | |
| System Fan | 92 mm x 92 mm x 2 pcs |
| Fan Speed Mode |
|
| Wireless Support (dongle) | |
| Power Recovery | |
| Noise Level* | 20.2 dB(A) |
| Scheduled Power On/Off | |
| Power Supply Unit / Adapter | 90W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 31.96 W (Access) 10.14 W (HDD Hibernation) |
| British Thermal Unit | 109.13 BTU/hr (Access) 34.62 BTU/hr (HDD Hibernation) |
| Environment Temperature | |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
| Warranty | 2 Years |
| Notes |
|
| DSM Specifications | |
| Storage Management | |
| Maximum Internal Volume Number | 256 |
| Maximum iSCSI Target Number | 10 |
| Maximum iSCSI LUN | 10 |
| Supported RAID Type |
|
| RAID Migration |
|
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD |
|
| Global Hot Spare Supported RAID Type |
|
| File Sharing Capacity | |
| Maximum User Accounts | 2048 |
| Maximum Groups | 256 |
| Maximum Shared Folder | 256 |
| Maximum Shared Folder Sync Tasks | 4 |
| Maximum Concurrent CIFS/AFP/FTP Connections | 256 |
| Windows Access Control List (ACL) Integration | |
| NFS Kerberos Authentication | |
| Log Center | |
| Syslog Events per Second | 400 |
| Add-on Packages | |
| Cloud Station Server | |
| Maximum Concurrent File Transfers | 256 |
| Download Station | |
| Maximum Concurrent Download Tasks | 50 |
| HiDrive Backup | |
| Media Server | |
| DLNA Certification | |
| PDF Viewer | |
| SpreadSheet | |
| Maximum Simultaneous Editing Users | 90 |
| Surveillance Station | |
| Maximum IP cam (Licenses required) | 25 (including 2 Free License) |
| Total FPS (H.264)* | 750 FPS @ 720p (1280×720) 200 FPS @ 1080p (1920×1080) 150 FPS @ 3M (2048×1536) 100 FPS @ 5M (2591×1944) |
| Total FPS (MJPEG)* | 250 FPS @ 720p (1280×720) 100 FPS @ 1080p (1920×1080) 60 FPS @ 3M (2048×1536) 40 FPS @ 5M (2591×1944) |
| Notes | Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. |
| Video Station | |
| Video Transcoding | Group 1 – Type 2 |
| VPN Server | |
| Maximum Connections | 15 |
| Environment & Packaging | |
| Environment | RoHS Compliant |
| Packaging Content |
|
| Optional Accessories |
|
