DiskStation DS216se
OverView

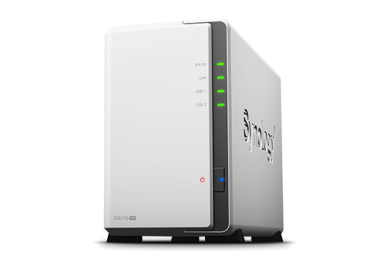

Synology DiskStation DS216se is a budget-friendly two-bay NAS device, ideal for starting your own cloud or creating a no-fuss and full-featured file server. Powered by DiskStation Manager, DS216se offers possibilities way beyond the traditional NAS servers with built-in applications and handy add-on packages.
The DS216se delivers an average of over 102 MB/sec reading and over 59 MB/sec writing speed under RAID 1 configuration in a Windows® environment.1The built-in floating-point unit enhances the overall capability of the main CPU, and is particularly advantageous in speeding up thumbnail creation when uploading large amounts of photos or videos.
Specifications
| Hardware Specifications | |
| CPU | |
| CPU Model | Marvell Armada 370 88F6707 |
| CPU Architecture | 32-bit |
| CPU Frequency | 800 MHz |
| Floating Point | |
| Hardware Encryption Engine | |
| Memory | |
| System Memory | 256 MB DDR3 |
| Storage | |
| Drive Bay(s) | 2 |
| Compatible Drive Type |
|
| Maximum Internal Raw Capacity | 16 TB (8 TB HDD x 2) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | 16 TB |
| External Ports | |
| USB 2.0 Port | 2 |
| File System | |
| Internal Drives | EXT4 |
| External Drives |
|
| Appearance | |
| Size (Height x Width x Depth) | 165 mm x 100 mm x 225.5 mm |
| Weight | 0.87 kg |
| Others | |
| RJ-45 1GbE LAN Port | 1 |
| System Fan | 92 mm x 92 mm x 1 pcs |
| Fan Speed Mode |
|
| Wireless Support (dongle) | |
| Power Recovery | |
| Noise Level* | 18.4 dB(A) |
| Scheduled Power On/Off | |
| Power Supply Unit / Adapter | 60W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 13.73 W (Access) 5.12 W (HDD Hibernation) |
| British Thermal Unit | 46.88 BTU/hr (Access) 17.48 BTU/hr (HDD Hibernation) |
| Environment Temperature | |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
| Warranty | 2 Years |
| Notes |
|
| DSM Specifications | |
| Storage Management | |
| Maximum Internal Volume Number | 256 |
| Supported RAID Type |
|
| RAID Migration | Basic to RAID 1 |
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD | Synology Hybrid RAID |
| File Sharing Capacity | |
| Maximum User Accounts | 512 |
| Maximum Groups | 128 |
| Maximum Shared Folder | 256 |
| Maximum Shared Folder Sync Tasks | 2 |
| Maximum Concurrent CIFS/AFP/FTP Connections | 64 |
| Windows Access Control List (ACL) Integration | |
| NFS Kerberos Authentication | |
| Log Center | |
| Syslog Events per Second | 50 |
| Add-on Packages | |
| Cloud Station Server | |
| Maximum Concurrent File Transfers | 64 |
| Download Station | |
| Maximum Concurrent Download Tasks | 20 |
| HiDrive Backup | |
| Media Server | |
| DLNA Certification | |
| PDF Viewer | |
| SpreadSheet | |
| Maximum Simultaneous Editing Users | 10 |
| Surveillance Station | |
| Maximum IP cam (Licenses required) | 5 (including 2 Free License) |
| Total FPS (H.264)* | 50 FPS @ 720p (1280×720) 20 FPS @ 1080p (1920×1080) 10 FPS @ 3M (2048×1536) 10 FPS @ 5M (2591×1944) |
| Total FPS (MJPEG)* | 20 FPS @ 720p (1280×720) 10 FPS @ 1080p (1920×1080) 10 FPS @ 3M (2048×1536) 6 FPS @ 5M (2591×1944) |
| Notes | Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. |
| Video Station | |
| Video Transcoding | Group 2 |
| VPN Server | |
| Maximum Connections | 5 |
| Environment & Packaging | |
| Environment | RoHS Compliant |
| Packaging Content |
|
| Optional Accessories |
|
